Name:SecuGen HU20AL
Model:SecuGen Hamster pro20 HU20AL
Product Features:
 SecuGen Hamster pro20 HU20AL
Description Parameter


Hamster Pro 20

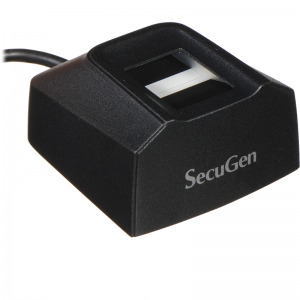

The Hamster Pro 20 is SecuGen’s ultra-compact, high image quality USB fingerprint reader that is FBI Certified as meeting FIPS 201 (PIV) and Mobile ID FAP 20 requirements. Featuring a low-profile and water-resistant design, the Hamster Pro 20 is built with the industry’s most rugged and advanced optical sensor using patented fingerprint technology. The Hamster Pro 20 can be used for authentication, identification and verification functions that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen.

Features



  • FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant) meets FBI Image Quality standards
  • STQC Certified for AADHAAR / UIDAI applications
  • Fake Finger Rejection Technology designed to reject spoofed fingerprints
  • Water Resistance and Dust Resistance
  • Rugged, high-performance, maintenance-free optical sensor resistant to scratches, impact, vibration and electrostatic shock
  • Fast recognition and high quality imaging of difficult fingerprints (dry, wet, scarred) in challenging environments
  • Fast and accurate verification
  • Readily accessible for any finger
  • Auto-On™ – automatic finger detection technology (when used with apps built with SecuGen SDKs)
  • Smart Capture™ – self-adjusting scanning technology (when used with apps built with SecuGen SDKs)
  • Device Recognition™ – device authentication technology (when used with apps built with SecuGen SDKs)
  • Fingerprint template encryption (when using SecuGen Proprietary template format)
  • Latent print rejection (does not accept prior fingerprints left behind on sensor)
  • Ultra-compact, lightweight and portable
  • Integrated finger guide
  • USB connection

Product


  • Model
  • Fingerprint Sensor (Type)
  • Image Resolution
  • Image Size
  • Platen Size
  • Sensing Area
  • Image Gray Scale
  • Light Source
  • Smart Capture Speed
  • Biometric Standards/Specs
  • Dimensions
  • Weight
  • Cable Length
  • Operating Temperature
  • Operating Humidity
  • Interface
  • Supply Voltage
  • Current Consumption (max.)
  • Compliance
  • Water/Dust Resistance
  • Other Features (*when used with SecuGen SDKs)
  • Warranty
  • Supported Operating Systems





Hamster Pro 20


  • HU20-AL (current model)
  • U20-AL (contact)
  • 500 DPI
  • 300 x 400 pixels
  • 18.2 mm x 23.1 mm
  • 15.2 mm x 20.3 mm
  • 256 levels (8-bit)
  • LED
  • 0.2 ~ 0.5 seconds
  • INCITS 378, ISO/IEC 19794-2, ISO/IEC 19794-4, FIPS 201, FBI (PIV, Mobile ID FAP 20), NIST MINEX, WSQ
  • 53.9 mm x 58.5 mm x 31.6 mm
  • 98 g
  • 1500 mm
  • -20° ~ 65°C
  • 90% or less RH, noncondensing
  • USB 2.0 Hi-Speed
  • 5V (via USB)
  • 130 mA
  • FCC, CE, KC, RoHS3, CB, WEEE, USB 2.0, STQC, WHQL
  • IP54 rated
