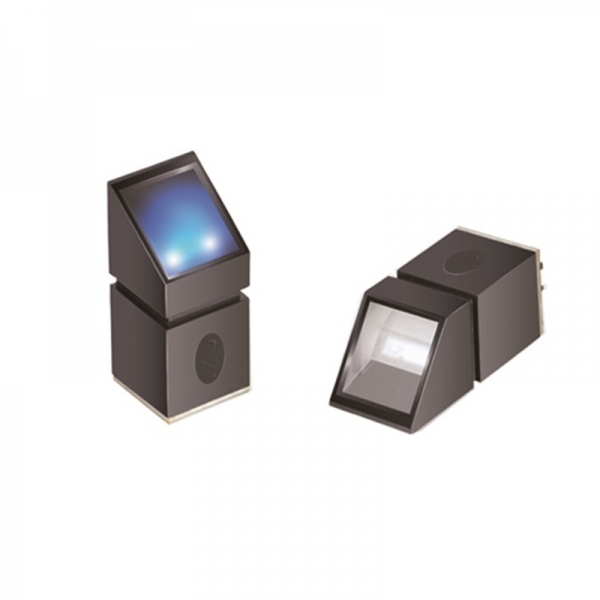

Fingerprint Modules

Supply voltage

5V（ typical value），range：4.2V-7.0V

Supply current

60mA(typical value)， Peak current：80mA

Operating Temperature Range

-30℃－+70℃

Storage Temperature Range

-40℃－+80℃

Operating humidity Range

20%—90%

Storage Humidity Range

16%—95%

Casing Dimension

78*50*60mm

Sensor window size

21*24mm

Image size

256*288pixel

Image pixel

500DPI

Matching mode

1:1 / 1:N

Casing Color

Blue / Black / Silver / Customized

Fingerprint capacity

1000 in device, no limited for database

Security level

3 level（from low to high：1、2、3）

FAR

<0.001%

FRR

<0.005%

Search time

<0.7second

Communication interface

UART（TTL logic level) / USB / Micro USB

Supported OS

Windows7,8,10 / Android /Linux

Special function

Self-learning function of the fingerprint
